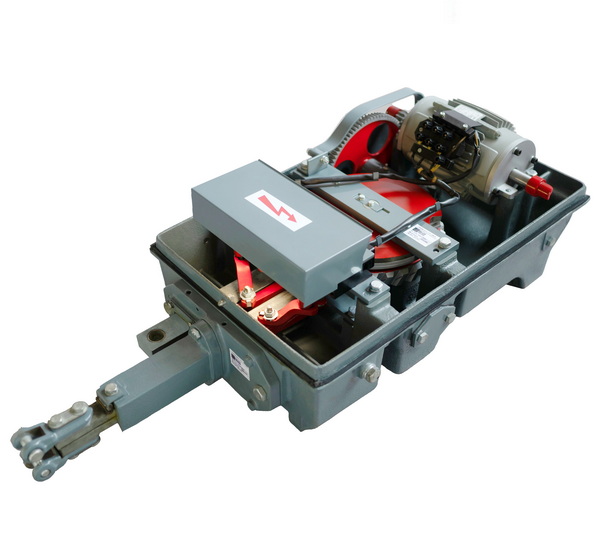

The GFSU-700-M point machine is designed for switching a railway turnout from one position to another, while ensuring reliable locking and secure holding of the switch rail (switch tongue) in the end position.

In case of malfunction or irregular operation, the status of the turnout is indicated on the control panel in the station control room.

The turnout equipment ensures secure fastening, connection, and transmission between the point machine and the turnout mechanism.

01-Skretnična sprava GFSU 700

Main Features of GFSU-700-M

  • Control via 4 wires (control voltage 60 V)
  • Cut-through and reversible design
  • Manual operation using a hand crank in case of power failure

Adjustable stroke of the operating lever with switch opening adjustment (150–170 mm)

Mechanical Characteristics

  • Stroke: 220 mm
  • Switching time (220 mm): 3.0 – 3.9 s
  • Transmission ratio: 1 : 7
  • Cut-through force (both machines): Ft ≤ 11,000 N
  • Holding force: Fr = 7,000 N

Drive Variants

EPS Ei-700 Point Machine

  • Power supply: 3 × 400 V, 50 Hz
  • Power: 0.45 kW
  • Speed: 1320 rpm
  • 4-pole motor
  • Switching force: 4000 N ±10%
  • Switching current: ≤ 2 A at 400 V AC

EPS GFSU-700-M (Reinforced Motor)

  • Power supply: 3 × 400 V, 50 Hz
  • Power: 0.55 kW
  • Speed: 1280 rpm
  • 4-pole motor
  • Switching force: 5500 N ±10%
  • Switching current: ≤ 2 A at 400 V AC

Construction and Protection

  • Protection rating: IP54
  • Weight: 165 kg
  • Housing equipped with key No. 1
  • Turnout fittings adapted for installation on all rail types

The device is designed for long-term operation in demanding railway infrastructure conditions, ensuring high mechanical durability and operational safety.

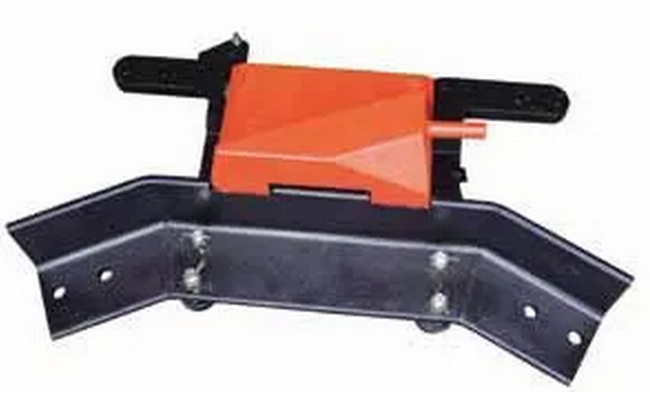

Derailer Type IS

The IS type derailer is used to prevent unintended entry of rail vehicles from a siding onto the main track or to stop unauthorized movement.

It is made of a robust steel structure shaped as an inclined rib with a mounting base.

The inclined surface is installed above the rail and, when a vehicle approaches, forces the wheel off the track, thereby preventing greater damage that could occur due to incorrect routing of the vehicle.

Variants

  • IS-L (left)
  • IS-D (right)

The derailer can be:

  • Manually operated
  • Operated via a turnout point machine adapted for its drive.
